High-Performance Tungsten Carbide Roll Rings with Reinforced Ribs for Ribbed Steel Rolling

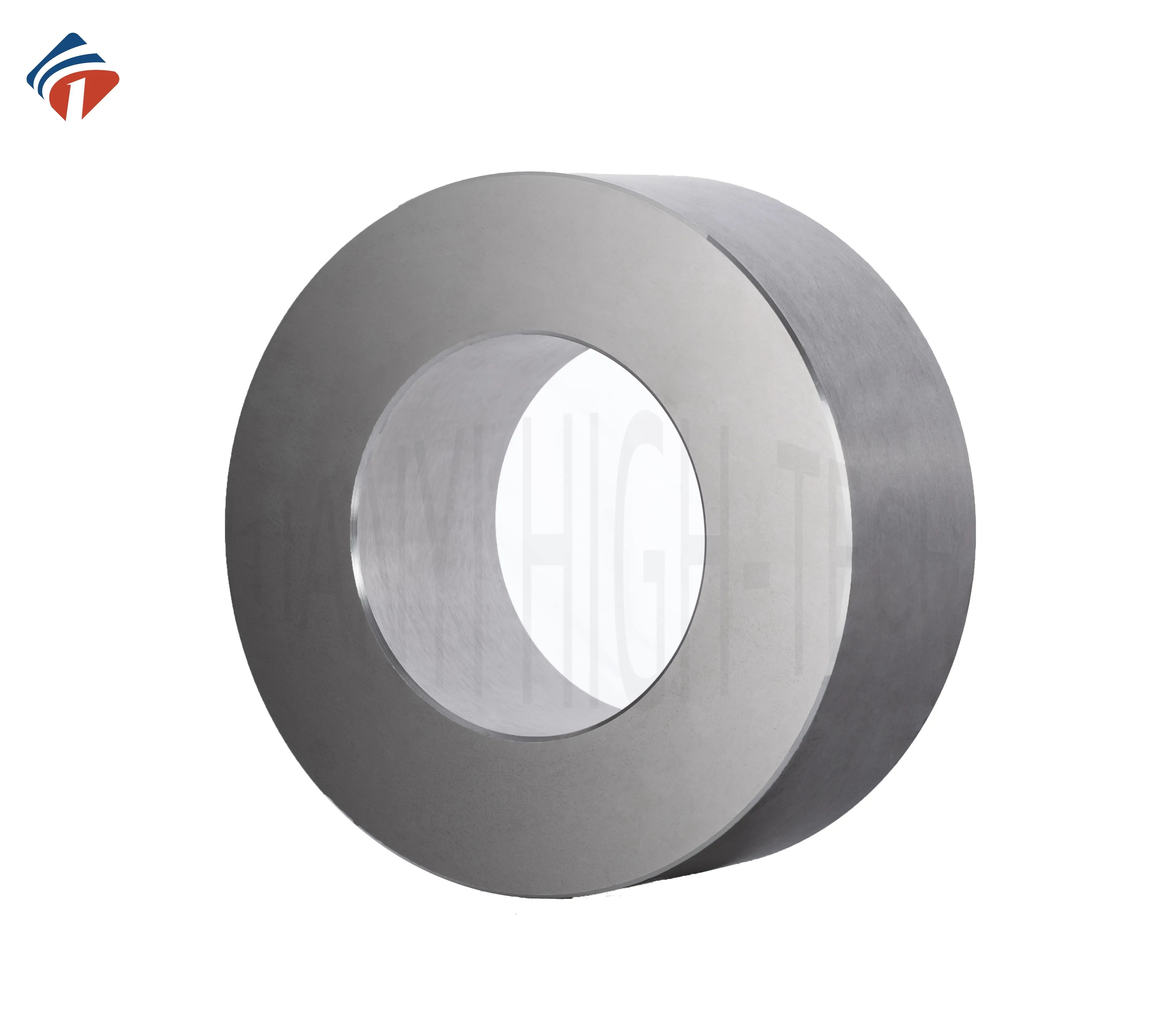

High Performance Tungsten Carbide Roll Ring With Ribs

Product Information

* Material: WC, Metallic binder (Cobalt, Nickel, etc.)
* Roller Style: Light roller /Grooving roller/Threaded roller.
* Application: Pre-finishing & Finishing Rolling In Rolling Mill.
* Types of Rolling: Hot Rolling(High-Temperature),Cold Rolling(Room temperature).
* Surface: Polishing.
* Advantage: exceptional hardness, high wear resistance, high resistance, and durability.
* Certification: ISO Certificate.
* Other Services: OEM/ODM.

Technical Parameter

1) The specification of the cemented carbide roller

2) The tolerances allowable for the outer diameter, inner diameter, and height of roll rings

3) The allowable deviation of carbide roll rings

a. Radial runout of groove: ≤0.013mm

b. Radial runout of geriphery: ≤0.013mm

c. End face runout: ≤0.02mm

d. End face planeness: ≤0.01mm

e. End face parallelism: ≤0.01mm

f. Inner hole cylindericity: ≤0.01m

4) Roughness of carbide rolls

Inner hole roughness: 0.4μm

Periphery roughness: 0.4μm

End face roughness: 0.4μm

Note:

The allowable deviation in external diameter, diameter, and height is to be determined based on the customers' needs.

We can customize your size & materials according to the drawings provided by customers.

Service Display

Pre-sales:
We provide professional recommendations based on customers’ actual working conditions and specific requirements. Custom design and development are available to meet individual needs. During special circumstances such as the epidemic, we also offer remote inspection and technical assistance.

Strict quality control:
Every stage—from raw material selection to production and final inspection—is strictly monitored. All performance parameters are thoroughly tested, and our dedicated QC team ensures full compliance with quality standards.

After-sales service:
We guarantee product quality and promptly address any problems or concerns that may occur.
