Description

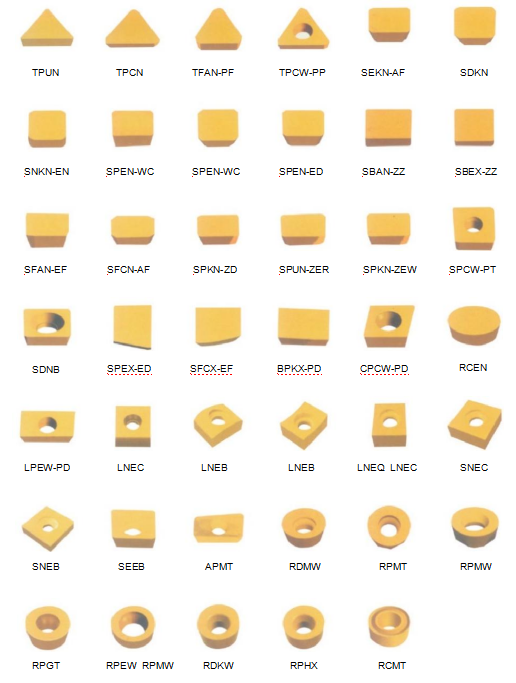

Insert Shape: H 、O 、P 、S 、T 、C 、E 、M 、W 、R

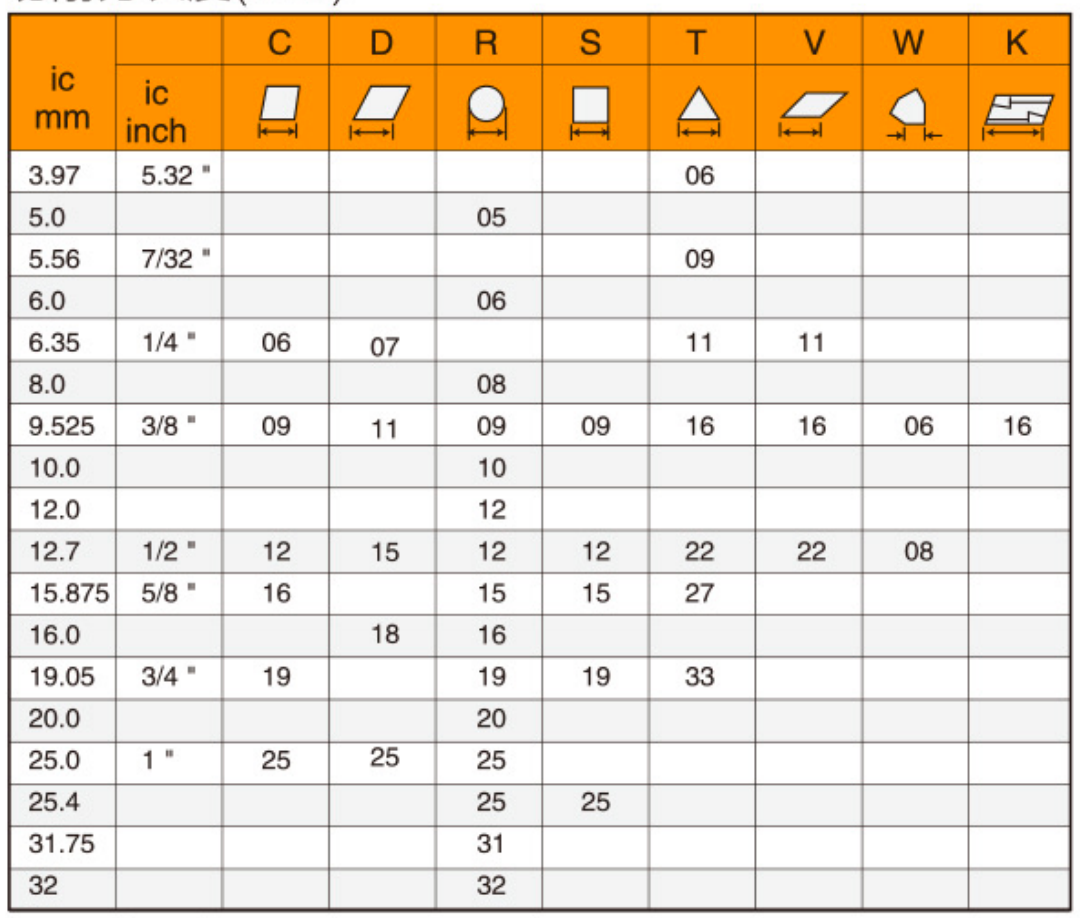

Inscribed circle dia		Tol m				Tol m
Inscribed circle dia		Grade M		Grade M		GradeM、J、K、L		Grade U
mm	in	mm	in	mm	in	mm	in	mm	in
6.35	0.250	±0.08	±0.003	±0.13	±0.005	±0.005	±0.002	±0.08	±0.003
9.525(10)	0.375	±0.08	±0.003	±0.13	±0.005	±0.005	±0.002	±0.08	±0.003
12.7(12)	0.500	±0.13	±0.005	±0.20	±0.008	±0.008	±0.003	±0.13	±0.005
15.875(16)	0.625	±0.15	±0.006	±0.27	±0.011	±0.010	±0.004	±0.18	±0.007
19.05(20)	0.750	±0.15	±0.006	±0.27	±0.011	±0.011	±0.004	±0.18	±0.007
25.4	1.000	±0.18	±0.007	±0.38	±0.015	±0.013	±0.005	±0.25	±0.010

Insert Shape D Insert Shape V

Inscribed circle dia		Tol m		Tol m
mm	in	mm	in	mm	in
6.35	0.250	±0.11	±0.004	±0.05	±0.002
9.525	0.375	±0.11	±0.004	±0.005	±0.002
12.70	0.500	±0.15	±0.006	±0.008	±0.003
15.875	0.625	±0.18	±0.007	±0.10	±0.004
19.05	0.750	±0.18	±0.007	±0.10	±0.004

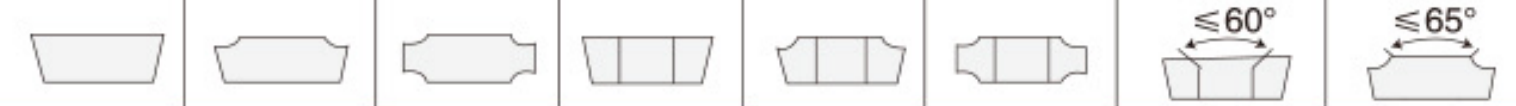

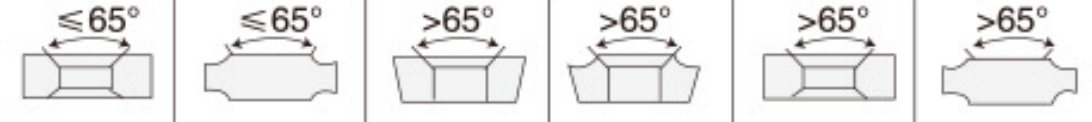

Chipbreaker and clamping form Thickness(mm)

N

R

F

A

M

G

W

Q

U

B

H

C

J

honing edge

A-45° F-85° D-60° P-90° E-75° Z-Other

Facets

Cutting edge chamfer

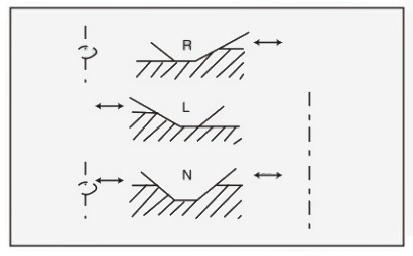

Feed direction

Cutting edge length(mm)
